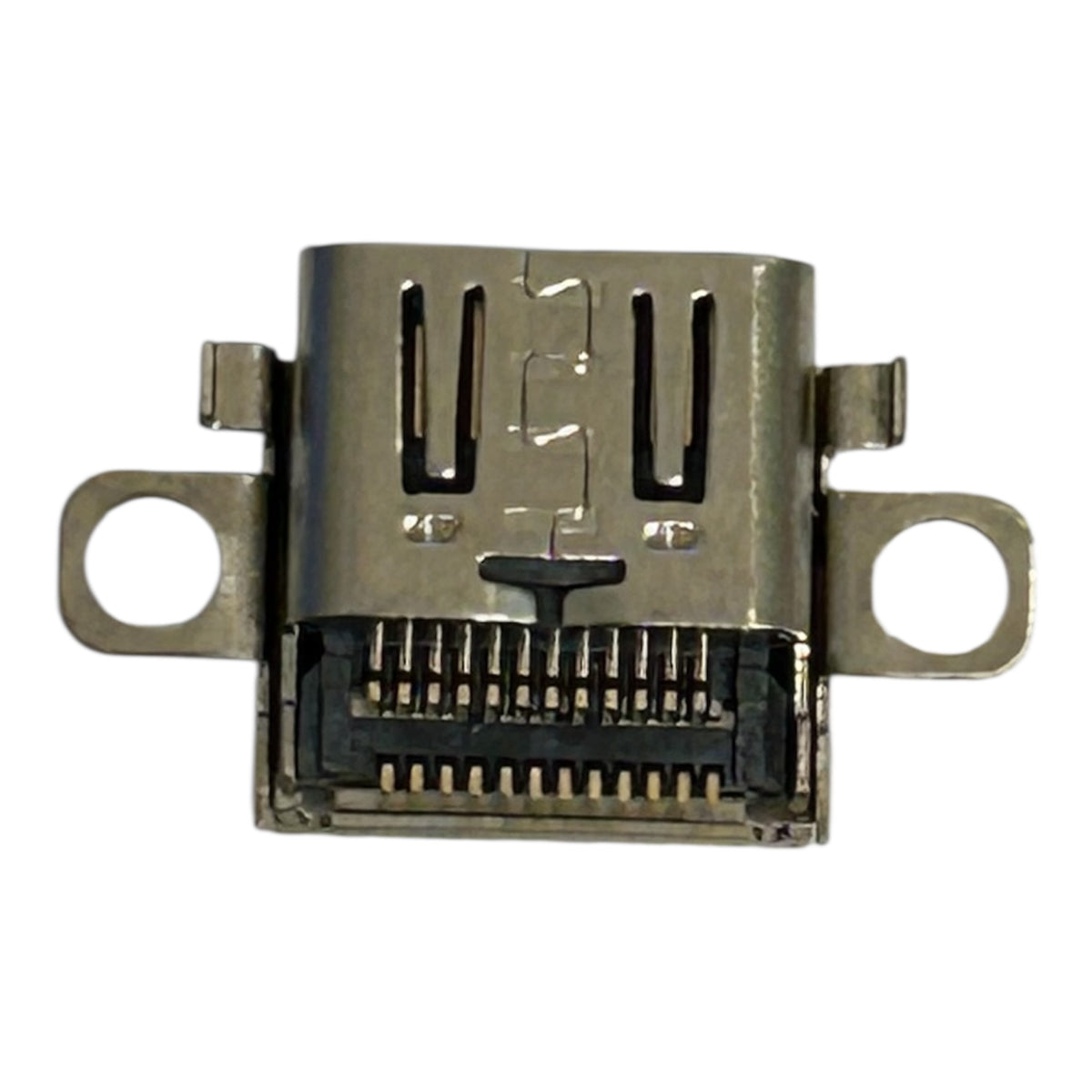

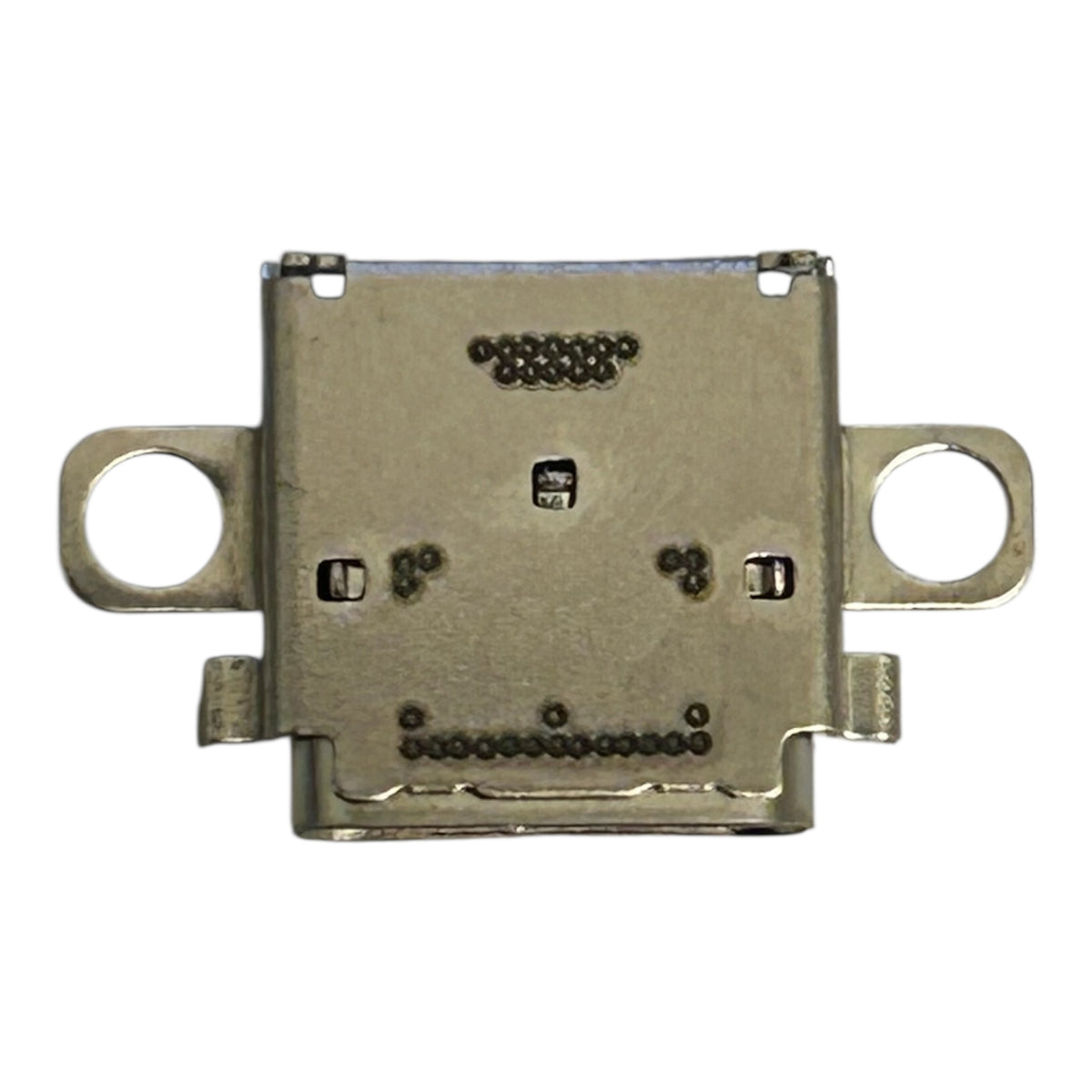

Nintendo Switch 2 – USB-C Port Top (Flat, Accessory Connector)

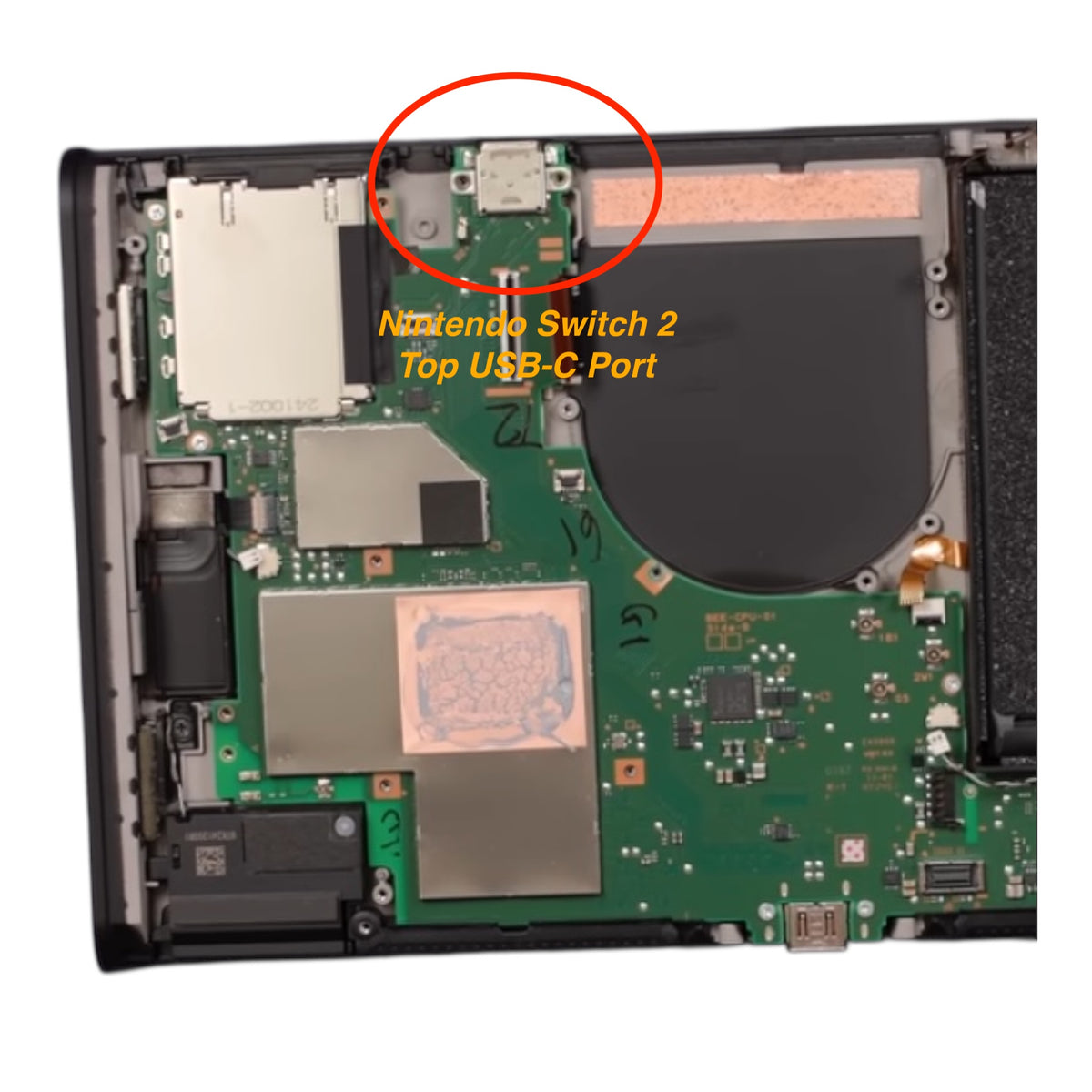

Replace the top USB Type-C port on your Nintendo Switch 2 with this replacement connector. This is the top port (near the game card slot when holding the console and looking at the screen) with a completely flat housing without a raised edge.

The top USB-C port is used for accessories, data, and charging depending on the use. The port can be damaged if the cable is bent, if the console is dropped, or if someone tries to connect the wrong cable with force.

Features:

• Compatible with Nintendo Switch 2 (top USB-C port)
• Flat USB-C housing without metal edge/ridge
• Designed for the port near the game card slot on the top
• Replaces loose, damaged, or worn contact
• Requires micro-soldering

Common symptoms of a defective top port:

• Feels loose or loses connection
• No response when connecting a cable to the top USB-C port
• The port is physically damaged, bent, or missing pins

Important to check before ordering:

• This is the top, flat USB-C port – visually compare it with your original port
• For the bottom port where the console connects to the dock, a different model with a metal edge is needed – see separate product
• Recommended to be replaced by technicians with experience in SMD/micro-soldering

Packaging:

• 1× Nintendo Switch 2 USB Type-C Top Port (flat housing)
